INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

Product Categories
JFZ BEARING CO.,LTD
Contact Now

INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

  • 1
  • 2
  • 3

Brand Name : INA

Model Number : GE70-KRRB

MOQ : 1

Price : USD 0.5-10 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS/MON

Delivery Time : 3-15 DAYS

Packaging Details : Single Box , Industrial Packing

Seal : 2F - Standard Seal for Y-bearings

Seal Type : Contact Seal

Contact Now

Main Dimensions & Performance Data
d 70 mm Bore diameter
DSP 125 mm Outside diameter
B 48.5 mm Width
B1 66 mm Locking collar total width
nG Grease 6,300 1/min Limiting speed for grease lubrication
Cr 66,000 N Basic dynamic load rating, radial
C0r 44,000 N Basic static load rating, radial
Cur 2,300 N Fatigue load limit, radial
≈m 2.08 kg Weight

INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

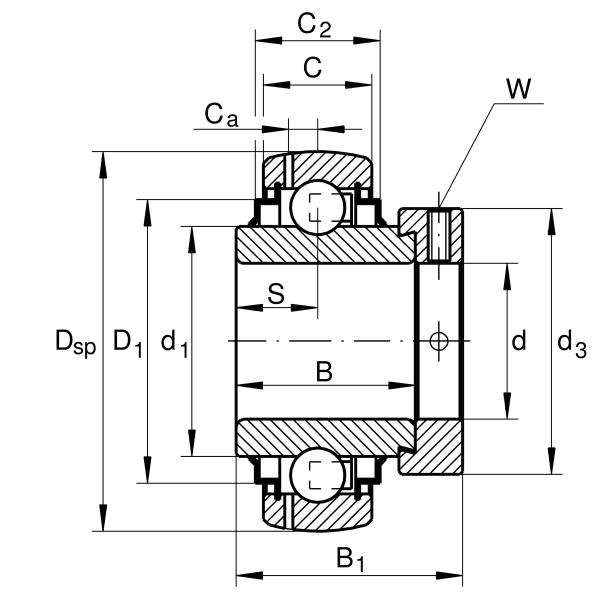

Dimensions
C 28 mm Width, outer ring
C2 32 mm Sealing total width
S 21.5 mm Distance raceway
d1 85.2 mm Rib diameter inner ring
D1 109 mm Outside diameter seal
Ca 8.9 mm Distance to lubrication hole
d3 96 mm Outside diameter locking collar/locknut
W 6 mm Width of flats

Additional information
f0 14.4 Calculation factor

Product Picture

INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar LockingINA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar LockingINA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis


China INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking wholesale
